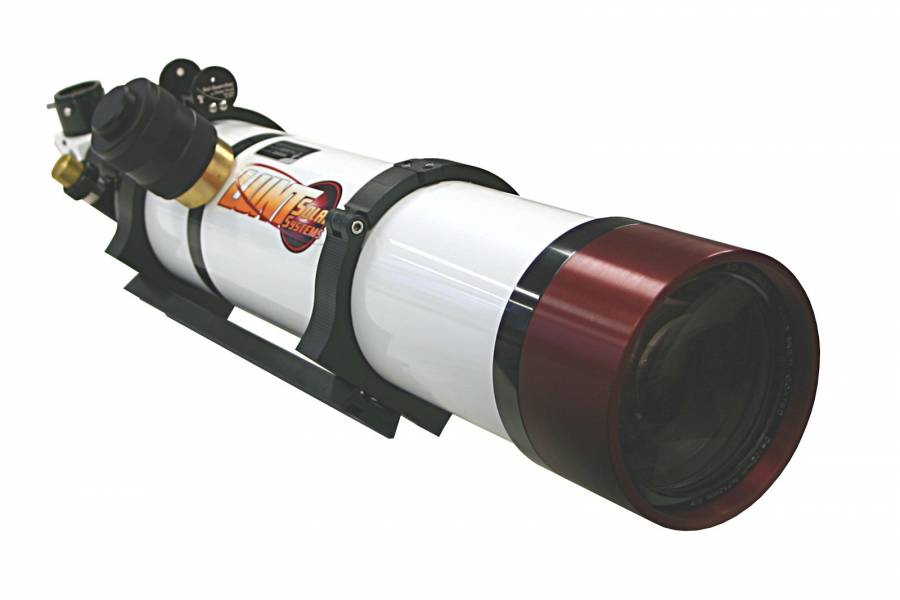

The LS100THa/B1800 is a complete telescope for observing the sun in H-alpha, a precision aligned ED refractor with 102mm aperture (no central obstruction) and 714mm focal length. An internal Etalon with advanced air-pressure tuning system “Pressure-Tuner” provides <0.7 Angstrom bandwidth. This “Pressure Tuner” system allows a more accurate Etalon adjustment than other systems. The “Pressure-Tuner” system adapted the Etalon to varying altitudes and atmospheric pressures for always optimal performance. The Etalon is installed safely inside the telescope-tube. Fine adjustment is achieved by a 2" Starlight-Instruments Feather-Touch focuser with 1.5" travel and 10:1 reduction.
Blocking-filter is the B1800. The B1800 is good for visual solar observing, and also good for solar imaging. The star diagonal in which the blocking filter is installed, is equipped as standard for 1.25" eyepieces and with a T2 camera connection.
Double-stacking is also possible at the LS100THa telescopes. It will reduce the bandwidth to <0.5 Angstrom, much more details on the solar surface will become visible. There are two different possibilities for double-stacking at the LS100THa telescopes. The professional, but also expensive solution is the additional available LS100FHa front-mounted double-stack filter . A well priced possibility is the also optional available internal double-stack module LS100THa/DSII .
Features:
The kit includes:
| Marka | LUNT Solar Systems |
| Garanti | 2 yıl |
| EAN | 4007922035123 |
| Nakliye Ağırlığı | 15 kg |
| Optik tasarım | refraktör |
| Birincil ayna çapı (açıklık), mm | 102 |
| Odak uzaklığı, mm | 714 |
| Açıklık oranı | f/7 |
| Odaklayıcı | 2", 2 hızlı (10:1), 1,5" çekme tüpü hareketi (Starlight Instruments Feather Touch®) |
| Engelleme filtresi | B1800 |
| Bant genişliği, Angstrom | <0.7 |
| Kırlangıç kuyruğu kundağı | yes |
| Gözlemlenen nesne | Güneş |
| Kese/çanta/torba sete dahildir | çanta |
| Çanta/torba/sırt çantası sete dahildir | yes |
